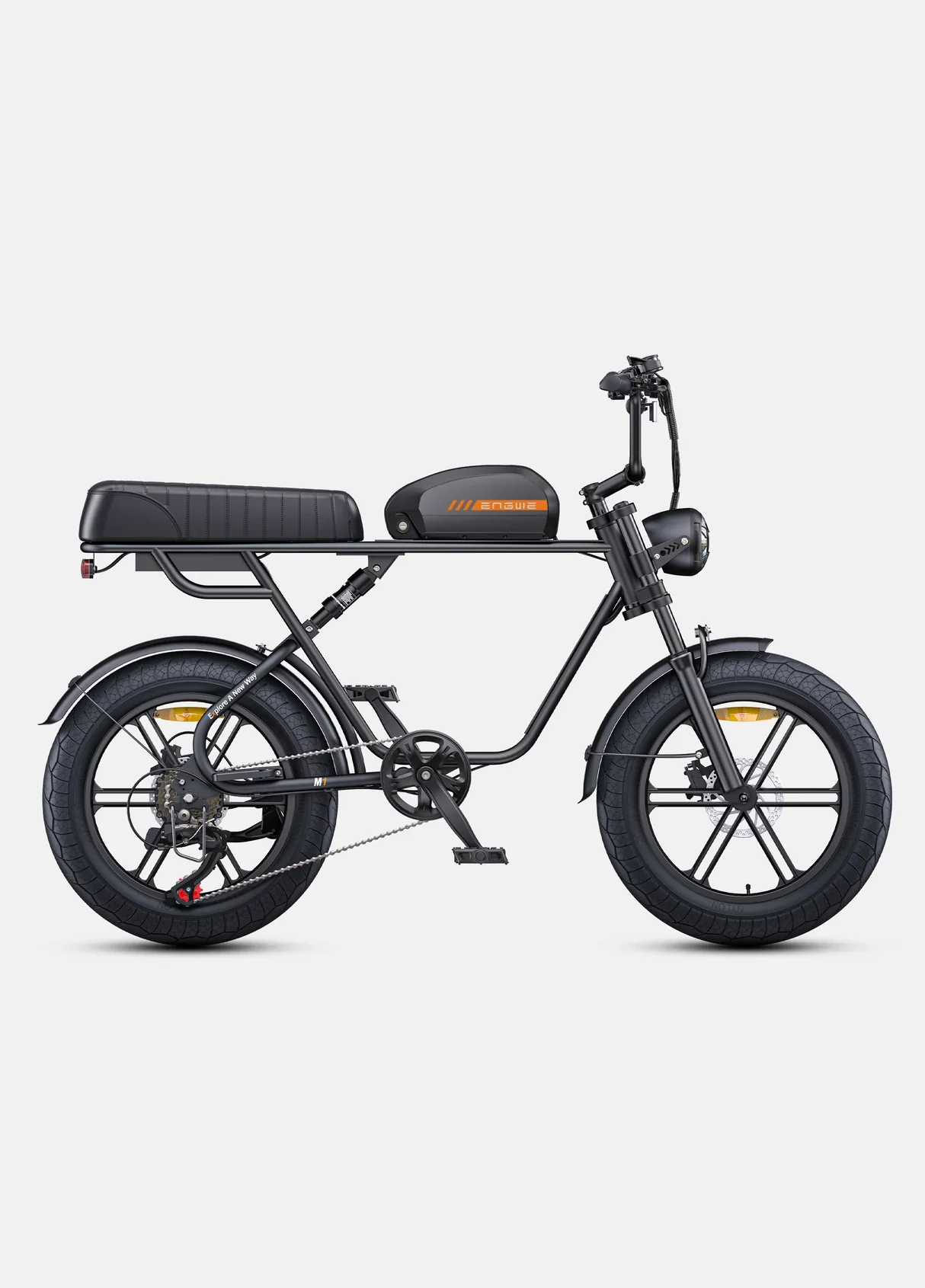

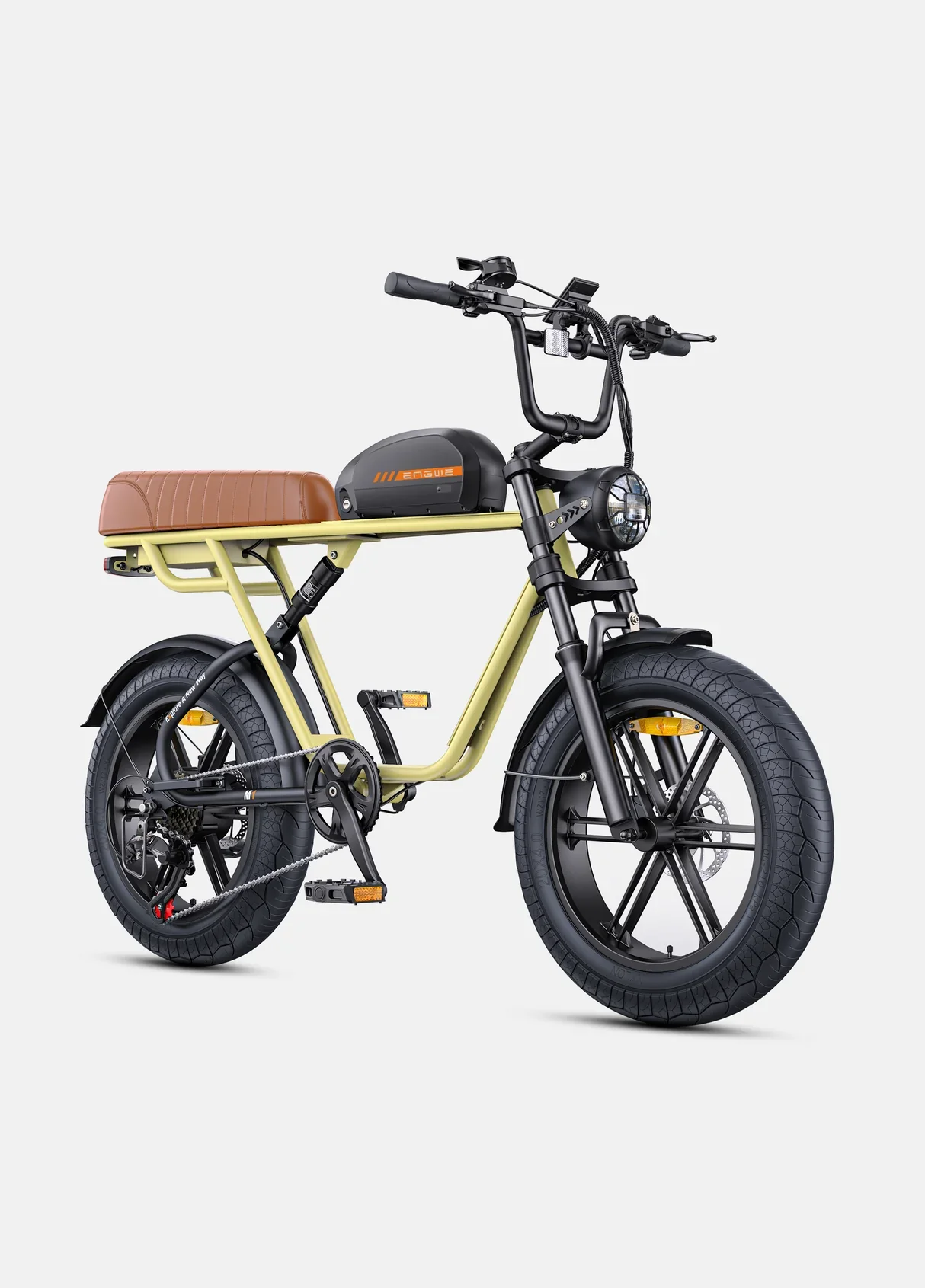

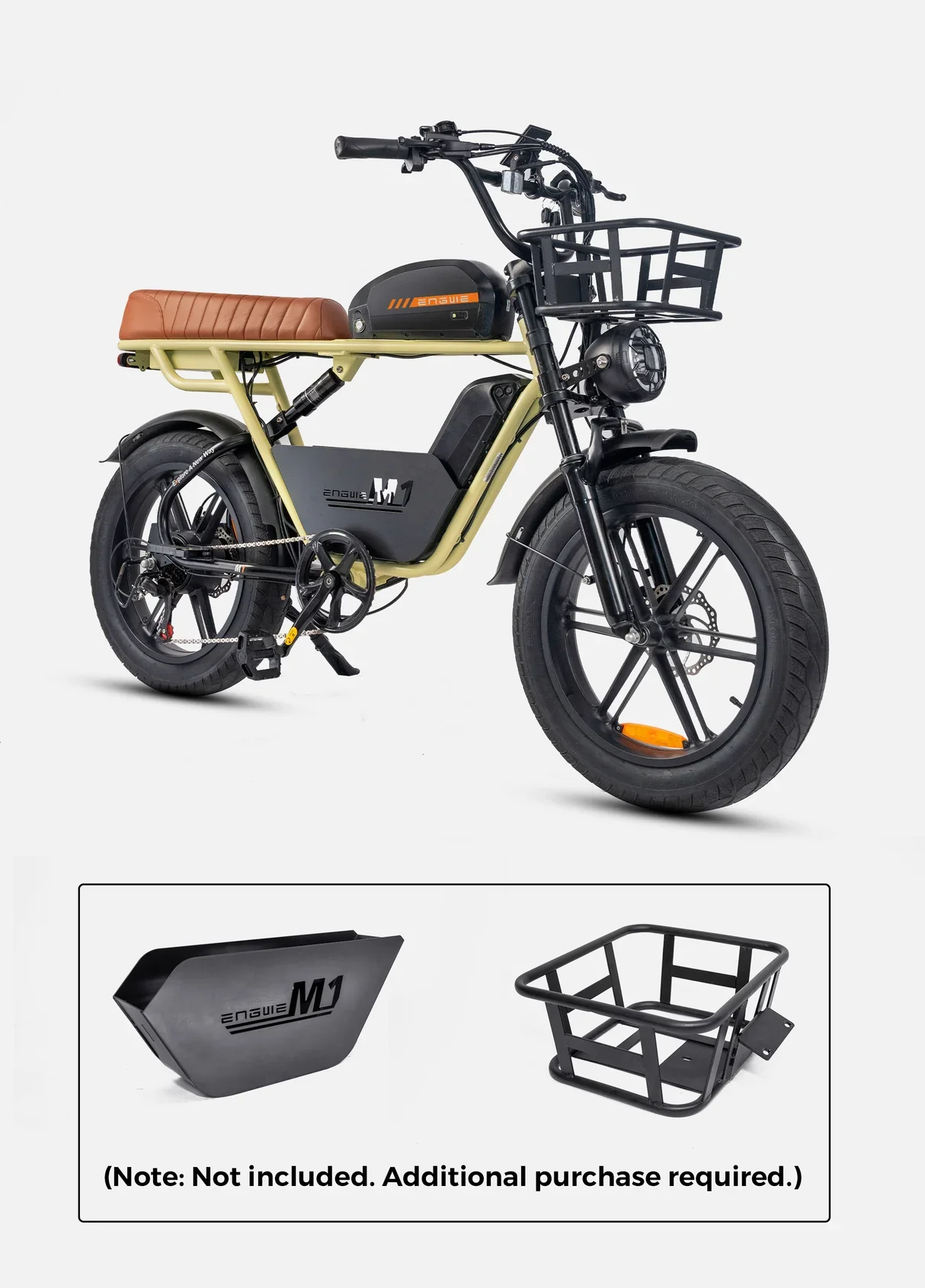

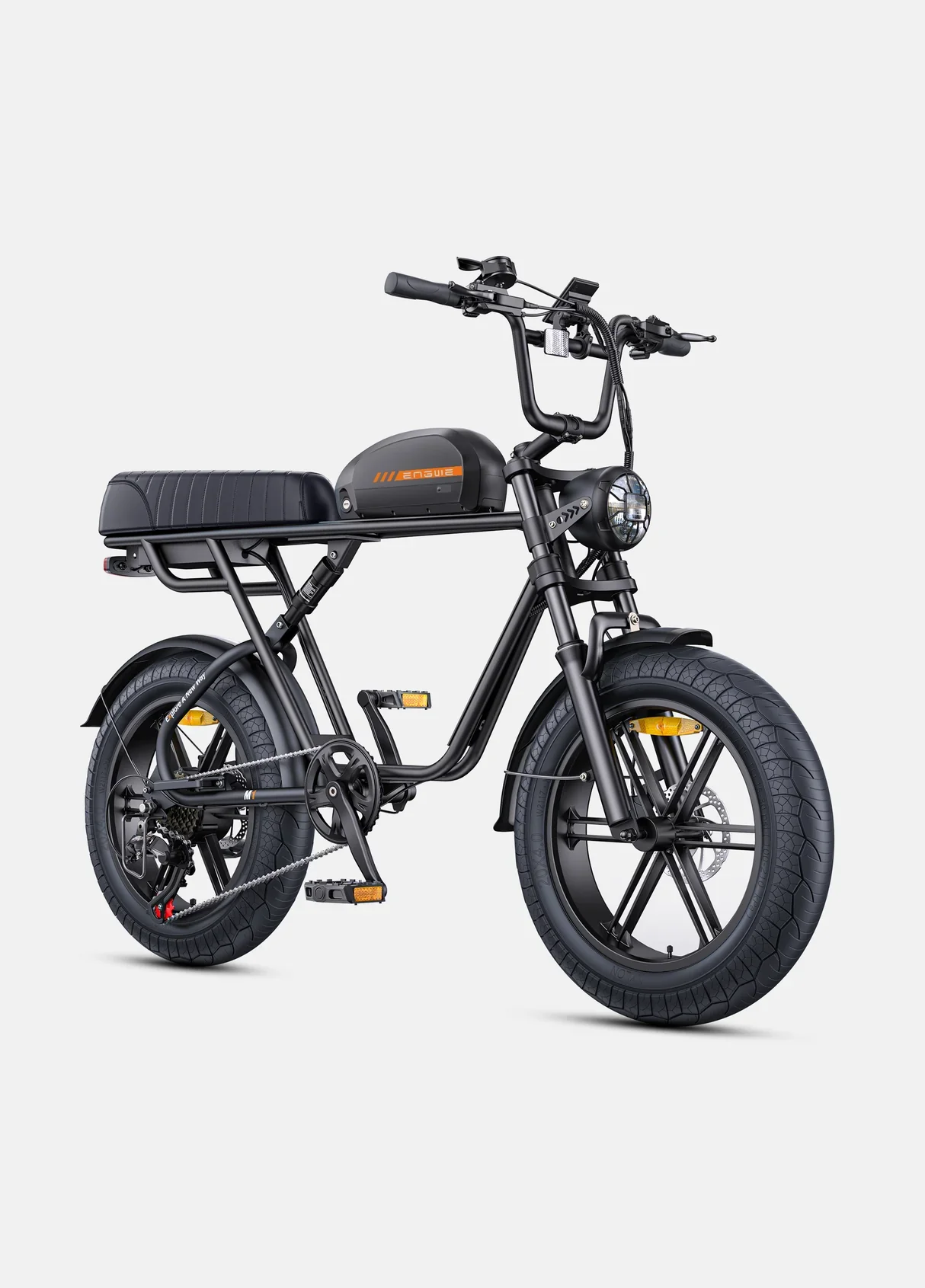

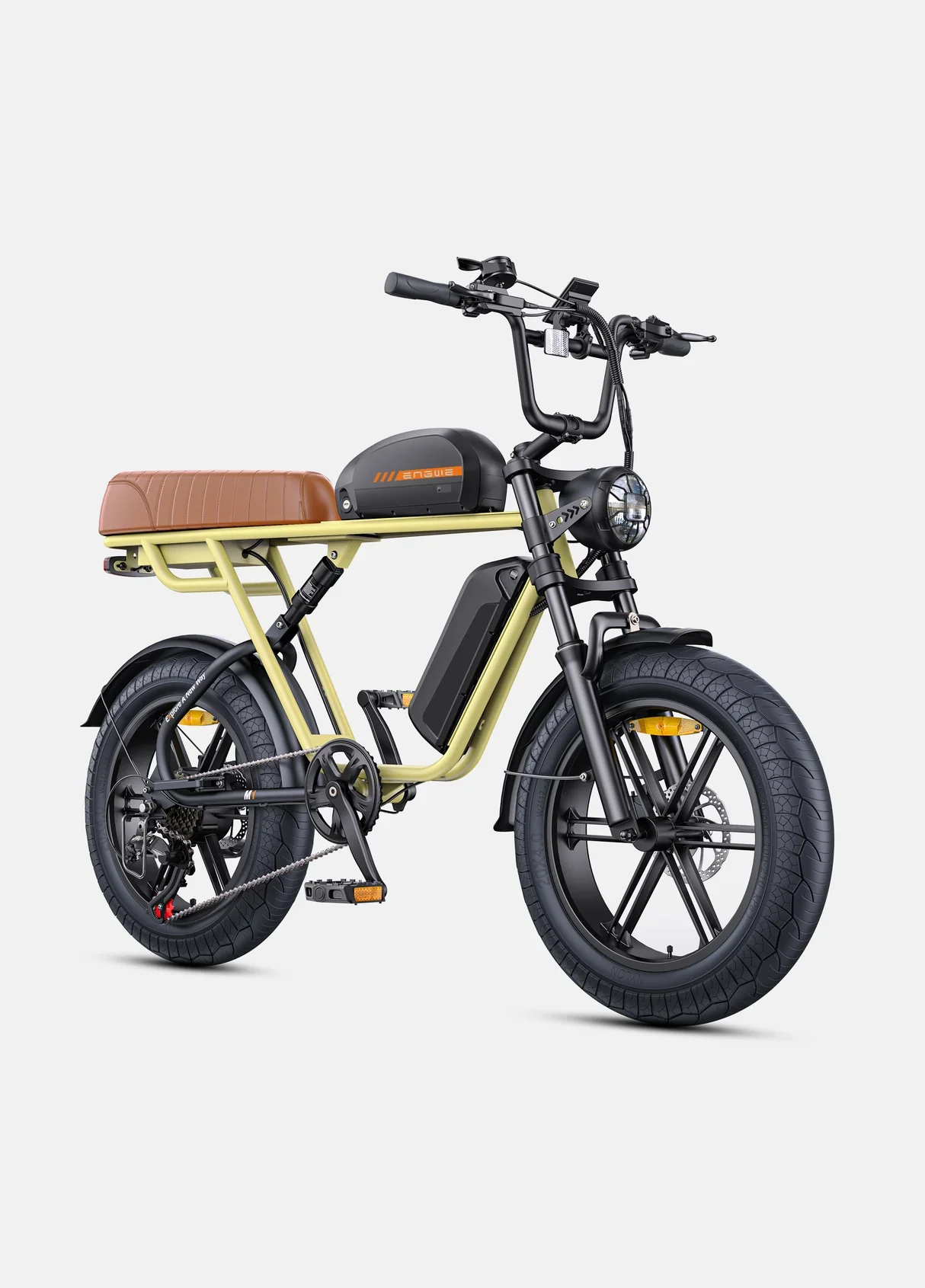

Engwe M1 Electric Bike

The ENGWE M1 is a motorcycle-styled electric bike designed for both urban commuting and off-road adventures. With its robust high carbon steel frame, powerful motor, dual suspension, and available dual battery setup, it offers a comfortable, capable, and long-range riding experience.

---

Key Features

• Motor & Power: 48V 250W brushless motor delivering 65 Nm of torque with speed sensor assist for smooth, responsive performance across all terrains.

• Battery & Range: Single Battery version comes with a 48V 15.6Ah lithium-ion battery for up to 90 km range (PAS 1, 75kg rider). Dual Batteries version adds a 48V 13Ah battery for up to 170 km range (PAS 1, 75kg rider).

• Dual Suspension: Front and rear shock absorbers ensure a smooth, comfortable ride across road, gravel, and off-road terrain.

• Tires: 20 x 4.0-inch fat tyres for excellent stability and traction on diverse surfaces.

• Braking System: 160mm hydraulic disc brakes front and rear for reliable, confident stopping power.

• Transmission: Shimano 7-speed gear system for versatile riding across different terrains and inclines.

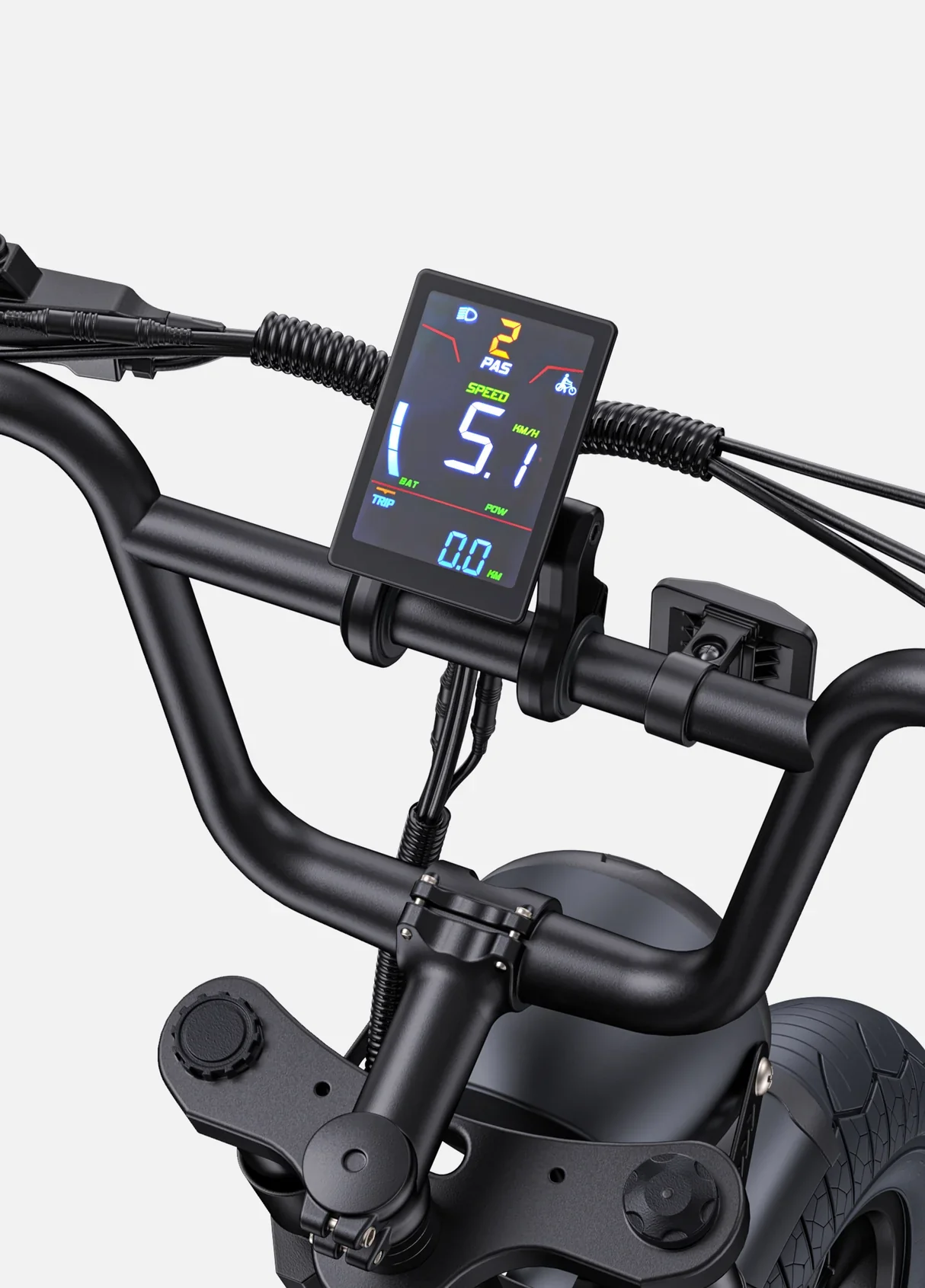

• Display & Lighting: LCD colour display for real-time ride data. Front & rear lights plus brake light and turn signals for maximum visibility and safety.

• Design: Motorcycle-inspired frame with dual passenger seat for comfortable two-person rides.

---

📏 Specifications

General

• Frame Material: High Carbon Steel

• Motor: 48V 250W Brushless Motor

• Torque: 65 Nm

• Sensor: Speed Sensor

• Suspension: Double Suspension (Front & Rear)

• Tires: 20 x 4.0" Fat Tyres

• Brakes: Hydraulic Disc Brakes, 160mm (Front & Rear)

• Drivetrain: Shimano 7-Speed

• Display: LCD Colour Display

• Max Speed: 25 km/h

• Lights: Front & Rear Light, Brake Light & Turn Signals

• Charging Time: Approximately 6–8 hours

• Payload Capacity: 150 kg (330 lbs)

Single Battery Version

• Battery: 48V 15.6Ah Lithium-Ion ×1

• Range: 90 km (PAS 1, 75kg rider, no load)

• Bike Weight: 39.5 kg

• Gross Weight: 49 kg

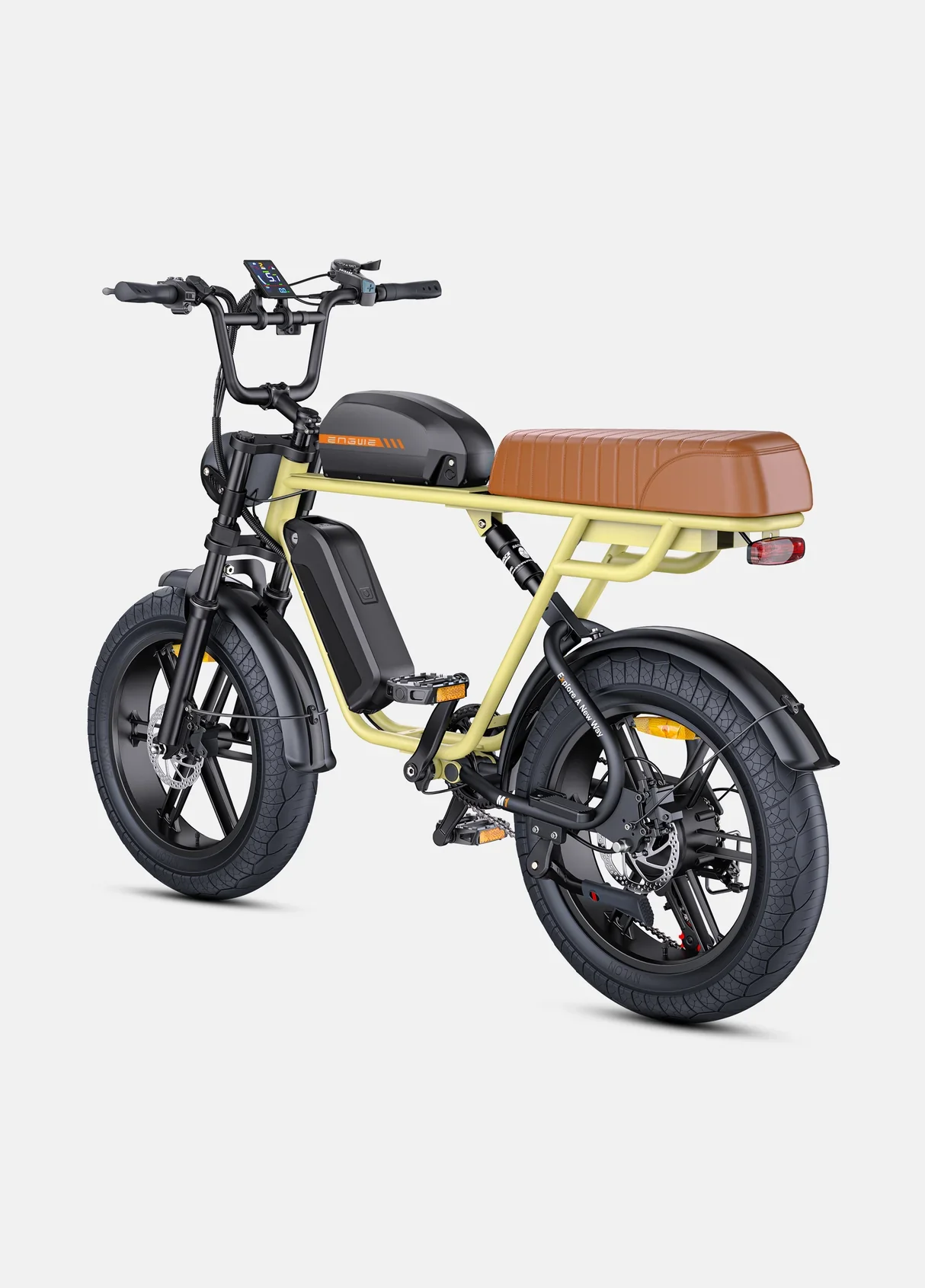

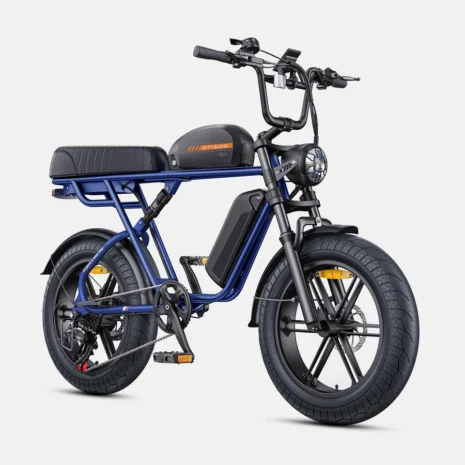

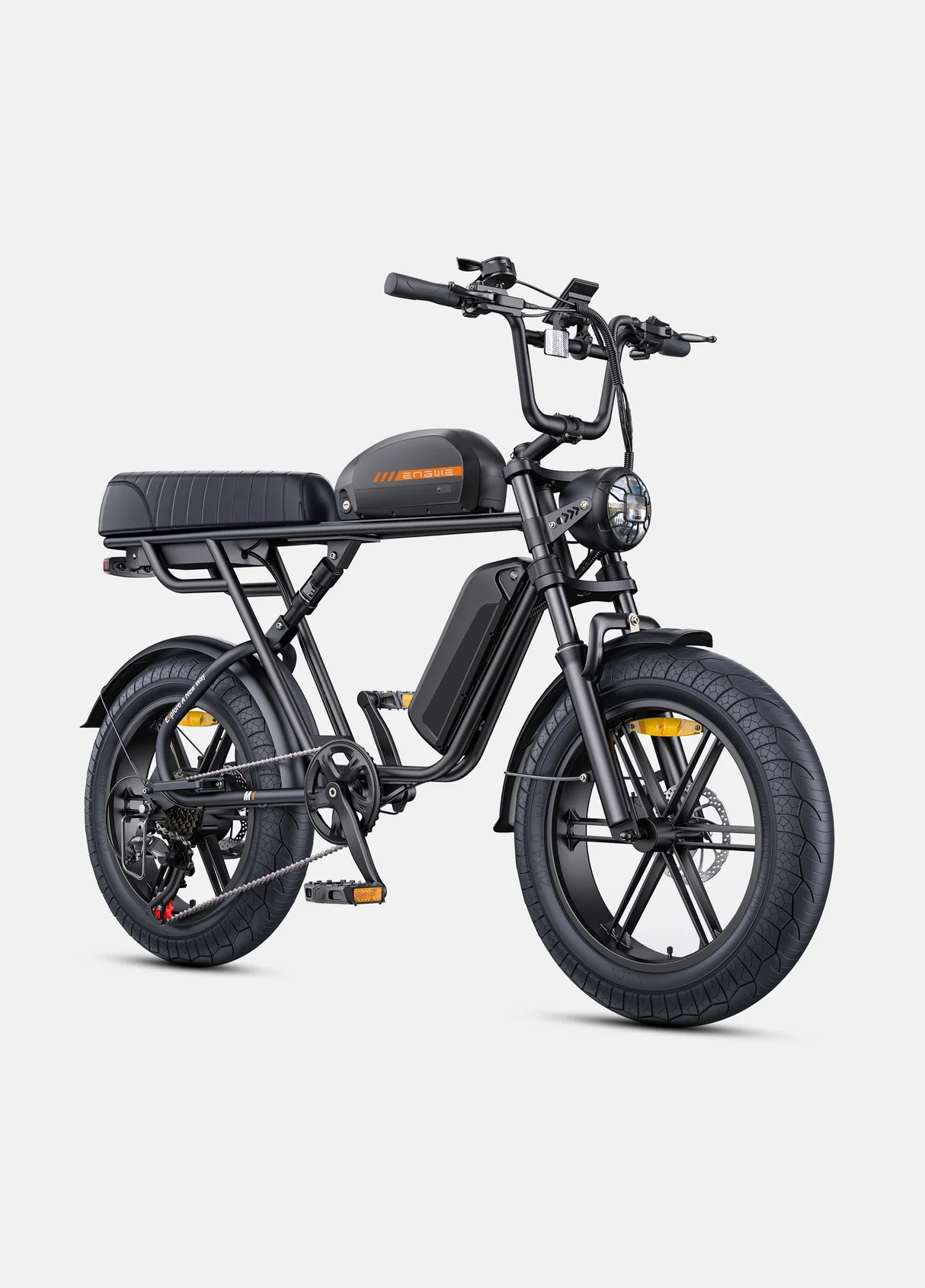

Dual Batteries Version

• Batteries: 48V 13Ah Lithium-Ion ×1 + 48V 15.6Ah Lithium-Ion ×1

• Range: 170 km (PAS 1, 75kg rider, no load)

• Bike Weight: 43 kg

• Gross Weight: 53 kg

---

👥 Geometry

• A – Wheelbase: 109 cm

• B – Total Length: 169.8 cm

• C – Reach: 42 cm

• D – Standover Height: 75.5 cm

• E – Min Saddle Height: 86 cm

• F – Max Saddle Height: 113.5 cm

Please note: There may be a difference of 0–5 cm between measured and actual data.

---

📦 Size & Packaging

• Rider Height: 5'3" – 6'3" (approx. 160–190 cm)

• Payload Capacity: 150 kg (330 lbs)

• Package Dimensions (L×W×H): 138 × 30 × 87.5 cm

---

📦 What's in the Box

• ENGWE M1 E-Bike ×1
• Single Battery Version: 48V 15.6Ah Lithium-Ion Charger ×1
• Dual Batteries Version: 48V 13Ah Lithium-Ion ×1 + 48V 15.6Ah Lithium-Ion ×1
• 48V 2A Battery Charger ×1
• Assembly Tools ×1
• User Manual ×1

Please note: The product you receive is based on the option you selected to order.

---

Ideal For

The ENGWE M1 is perfect for riders seeking a powerful and versatile e-bike that can handle both daily commutes and adventurous off-road trails. Its combination of speed, range, dual suspension, and motorcycle-inspired styling caters to a wide range of cycling enthusiasts.
