Engwe Zip Electric Bike

The ENGWE Zip is a premium ultra-compact folding electric bike engineered for urban riders who demand portability without compromise. Weighing just 16.9 kg without the battery, it features ENGWE's exclusive triple-folding patented design, a torque sensor motor, LG cell battery with USB-C fast charging, and hydraulic disc brakes — all packed into a bike that folds smaller than a carry-on suitcase.

---

Key Features

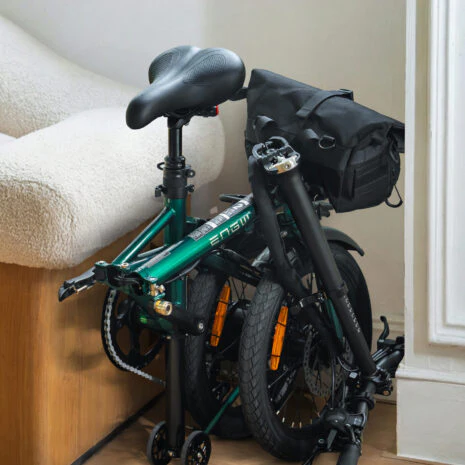

• Triple Folding Design: ENGWE's exclusive patented triple-fold mechanism collapses the Zip to just 62.5 × 37.4 × 67.3 cm — small enough to take on public transport, store under a desk, or fit in the boot of any car.

• Ultra-Lightweight: At just 16.9 kg (without battery) or 19.4 kg (with battery), the Zip is one of the lightest folding e-bikes available — easy to carry up stairs or onto a train.

• Torque Sensor Assist: The 250W rear hub motor with torque sensor delivers smooth, natural pedal assistance that responds intuitively to your effort — no jerky power surges, just seamless support.

• Long Range: The 36V 10Ah (360Wh) LG cell battery delivers up to 120 km (PAS 1), 85 km (PAS 2), or 60 km (PAS 3) of real-world range on a single charge.

• USB-C Fast Charging: The 100W GaN fast charger with PD 3.0 and USB-C interface charges the battery rapidly — and the battery itself features a built-in USB-C port for charging your devices directly.

• Hydraulic Disc Brakes: 160mm hydraulic disc brakes front and rear for precise, confident stopping in all conditions.

• Smart Connectivity: 3.2" colour LCD display with Bluetooth and ENGWE App control for ride data, settings, and more.

• Suspension Seatpost: 10-level adjustable suspension seatpost absorbs road vibrations for a comfortable ride on urban surfaces.

• CE Certified: CE (EN15194) certified by TÜV for peace of mind on every ride.

---

📏 Specifications

General

• Model: ENGWE Zip

• Bike Weight (Without Battery): 16.9 kg (37.26 lbs)

• Bike Weight (With Battery): 19.4 kg (42.77 lbs)

• Gross Weight: Approx. 25.5 kg (56.22 lbs)

• Max Load Capacity: 120 kg (264.55 lbs)

• Rider Height: 155 cm – 190 cm (5'0" – 6'2")

• Pedal Assist: 3 Levels

• Real-World Range: 120 km (PAS 1) / 85 km (PAS 2) / 60 km (PAS 3)

• Waterproof Rating: IPX7 (Wiring) / IPX6 (Display & Lights) / IPX5 (Motor, Controller & Battery)

• Certification: CE (EN15194) by TÜV

• Terrain: Tarmac Roads, Gravel-Paved Paths, Country Roads & Paved Trails

Frame & Fork

• Frame: Triple Folding Design (ENGWE Exclusive Patented Design)

• Frame Material: Steel

• Fork: Single-Sided Front Fork

Wheels & Tyres

• Tires: 16" × 1.95" Urban Hybrid Tyres

• Wheels: 16-inch, Steel Rim, 13G Spokes, Black

E-Bike System

• Motor: 250W Rear Hub Motor (EU Legal), 36V

• Max Torque: 40 Nm

• Assist System: Torque Sensor

• Battery: 36V 10Ah (360Wh), LG Cells with BMS, PD 3.0 USB-C Charging

• Charger: 100W GaN Fast Charger, PD 3.0, USB-C Interface

• Display: 3.2" Colour LCD with Bluetooth

• ENGWE App: App Control Available

• Front Light: 30 Lux Headlight

• Rear Light: Always-On Taillight

Brakes

• Brake Type: Hydraulic Disc Brakes

• Brake Rotors: 160mm Front & Rear

Drivetrain

• Chain: KMC E8S, Anti-Rust, 98 Links

• Chainring: 48T

• Crank Arms: 152mm

• Rear Derailleur: Shimano Tourney RD-TY300, 7-Speed

• Shifter: Shimano SL-M315-7R Rapidfire

• Cassette: 7-Speed, 11–28T

• Pedals: Quick-Release Pedals

Cockpit

• Handlebar: 560mm Width

• Stem: Folding Stem

• Saddle: Comfort Padded Saddle

• Seatpost: Suspension Seatpost, 10-Level Adjustable

• Seat Clamp: Quick-Release

---

👥 Geometry (Unfolded)

• A – Handlebar Height: 96 cm

• B – Total Length: 128.7 cm

• C – Reach: 52.6 cm

• D – Standover Height: 43.8 cm

• E – Wheelbase: 88.3 cm

• F – Minimum Saddle Height: 95 cm

• G – Maximum Saddle Height: 105 cm

---

📦 Size & Packaging

• Rider Height: 155 cm – 190 cm (5'0" – 6'2")

• Payload Capacity: 120 kg (264.55 lbs)

• Package Dimensions (L×W×H): 68.4 × 71 × 44.5 cm

• Package Weight: Approx. 25.5 kg (56.22 lbs)

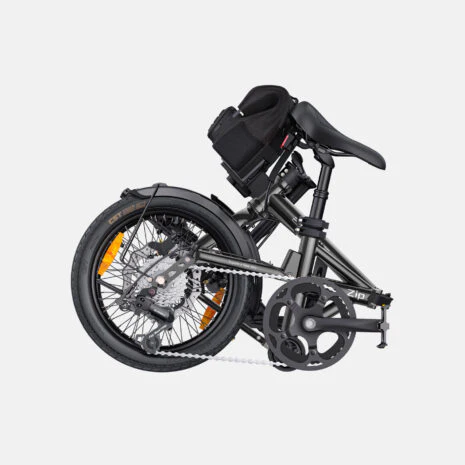

Folded Size: 62.5 × 37.4 × 67.3 cm

Please note: There may be a difference of 0–5 cm between measured and actual data.

---

Ideal For

The ENGWE Zip is the perfect urban companion for commuters, travellers, and city riders who need a genuinely portable e-bike without sacrificing performance. Its triple-fold design, torque sensor assist, fast charging, and hydraulic brakes make it one of the most capable compact e-bikes on the market.
